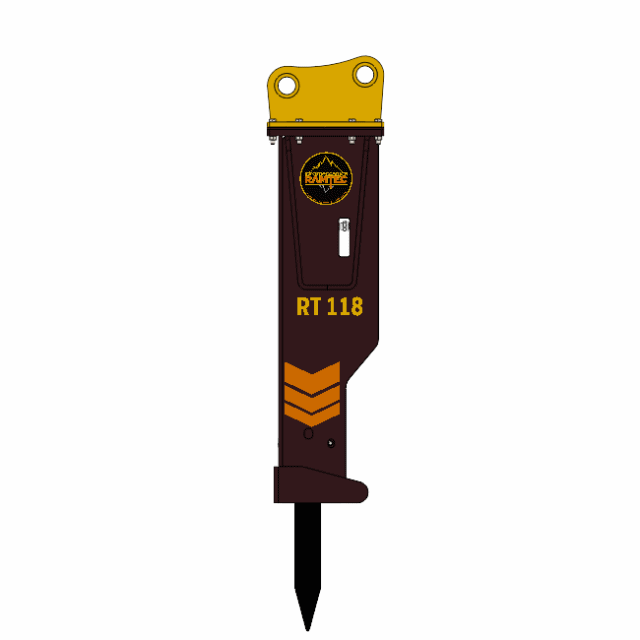

RT 118
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
14-24 t
You can mount it on
14-24 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
14 – 24 t
Breaker weight
2646 lb
Inner diam. IN hose
1 inch
Inner diam. OUT hose
1 inch
Chisel diameter
4.6 inch
Height with standard tool
82.7 inch
Required oil supply
29.06 – 39.63 gal/min
Oil pressure adjusted to the hammer
2030 – 2320 psi
Maximum back pressure
290 psi
Blows per minute
400 – 700
Energy per blow
2200 ft/lbs
METRIC SYSTEM
Carrier weight
14 – 24 t
Breaker weight
1200 kg
Inner diam. IN hose
25 mm
Inner diam. OUT hose
25 mm
Chisel diameter
118 mm
Height with standard tool
2100 mm
Required oil supply
100 – 150 L/min
Oil pressure adjusted to the hammer
120 – 160 bar
Maximum back pressure
20 bar
Blows per minute
400 – 700
Energy per blow
2900 J
The RT118 demolition hammer offers a great versatility, particularly suitable for reinforced concrete demolition works, channelling and tunneling.
This hydraulic hammer is suitable for wheeled and crawler excavator and it offers a great simplicity in manufacturing and in maintenance.
