RT 135
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
19-27 t
You can mount it on
19-27 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
19 – 27 t
Breaker weight
3968 lb
Inner diam. IN hose
1 inch
Inner diam. OUT hose
1 inch
Chisel diameter
5.3 inch
Height with standard tool
88.2 inch
Required oil supply
34.34 – 41 gal/min
Oil pressure adjusted to the hammer
2175 – 2610 psi
Maximum back pressure
217 psi
Blows per minute
400 – 800
Energy per blow
4000 ft/lbs
METRIC SYSTEM
Carrier weight
19 – 27 t
Breaker weight
1800 kg
Inner diam. IN hose
25 mm
Inner diam. OUT hose
25 mm
Chisel diameter
135 mm
Height with standard tool
2240 mm
Required oil supply
130 – 160 L/min
Oil pressure adjusted to the hammer
150 – 170 bar
Maximum back pressure
15 bar
Blows per minute
400 – 800
Energy per blow
4500 J

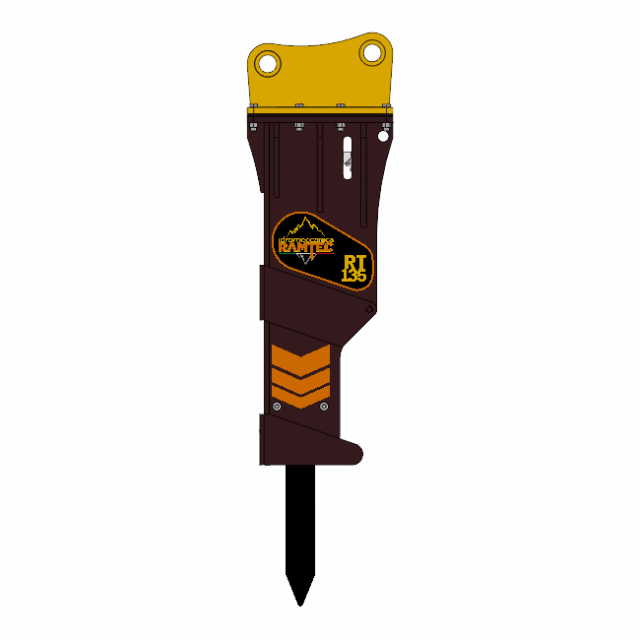

The RT135 demolition hammer has an excellent ratio weight/performance.
This hydraulic hammer is suitable for primary excavation of rocks, for crushing rocks in construction site, mine and quarry as well as demolition of reinforced concrete structures.
This hydraulic breaker offers a great simplicity in manufacturing and in maintenance.
