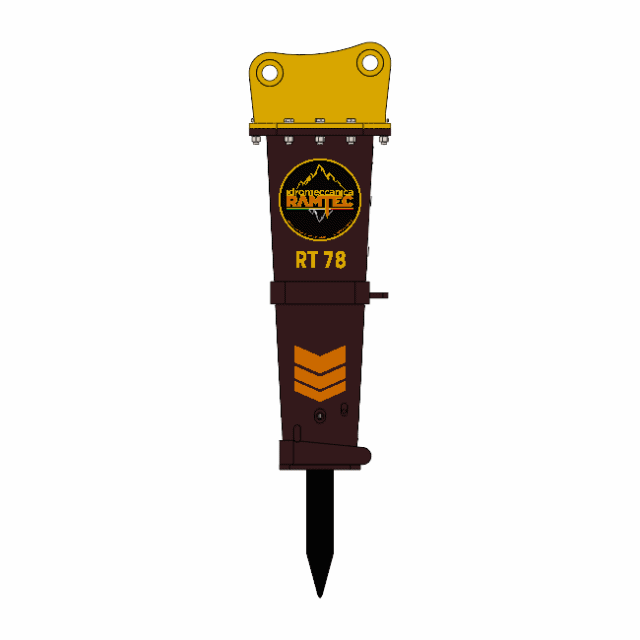

RT 78
HYDRAULIC BREAKERS
HYDRAULIC BREAKERS
You can mount it on
6-10 t
6-10 t
10 t
You can mount it on
6-10 t
6-10 t
10 t
USA SPECS
METRIC SYSTEM
USA SPECS
Carrier weight
6 – 10 t
Breaker weight
838 lb
Inner diam. IN hose
1/2 inch
Inner diam. OUT hose
3/4 inch
Chisel diameter
3.1 inch
Height with standard tool
51.2 inch
Required oil supply
15.85 – 25 gal/min
Oil pressure adjusted to the hammer
1015 – 1885 psi
Maximum back pressure
362 psi
Blows per minute
600 – 800
Energy per blow
600 ft/lbs
METRIC SYSTEM
Carrier weight
6 – 10 t
Breaker weight
380 kg
Inner diam. IN hose
12 mm
Inner diam. OUT hose
19 mm
Chisel diameter
78 mm
Height with standard tool
1300 mm
Required oil supply
60 – 95 L/min
Oil pressure adjusted to the hammer
70 – 130 bar
Maximum back pressure
25 bar
Blows per minute
600 – 800
Energy per blow
800 J
The RT78 demolition hammer is ideal for indoor and outdoor works, small concrete structures and asphalt pavings demolition, channelling, and to remove slags in foundries.
This hydraulic hammer is suitable for backhoe, mini excavator and midi excavator.
You can switch between this one and other 4 of our hydraulic breakers, on your mini loader, by using our skid steer plate.
