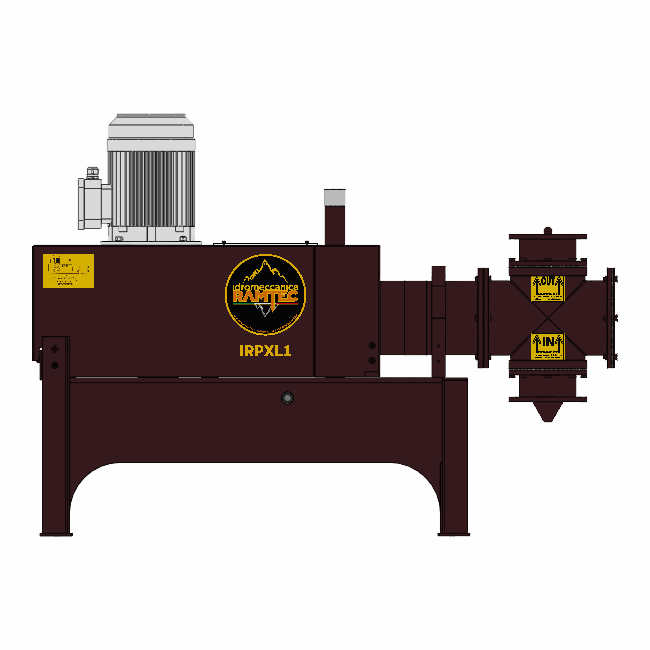

IRPXL1
PISTON PUMP
PISTON PUMP
USA SPECS
METRIC SYSTEM
USA SPECS
Dimensions HxWxD
49x69x22 inch
Dry weight
970 lb
Head
49 – 82 ft
Bore Ø
8 inches
Stroke
11 inches
Aspiration connection Ø
8.3 inches
Flow rate
66 – 79 gal/min
Engine power
7.5 kW
Engine frequency
50 Hz
Voltage
380 – 400 V
Electrical absorption
10 – 12 A
Adaptor type
Endless screw
METRIC SYSTEM
Dimensions HxWxD
1250x1750x550 mm
Dry weight
440 kg
Head
15 – 25 m
Bore Ø
200 mm
Stroke
280 mm
Aspiration connection Ø
210 mm
Flow rate
15000 – 18000 L/h
150 – 180 q/h
150 – 180 q/h
Engine power
7.5 kW
Engine frequency
50 Hz
Voltage
380 – 400 V
Electrical absorption
10 – 12 A
Adaptor type
Endless screw
Idromeccanica Ramtec’s IRP piston pump is the best solution to constantly and uniformly move considerable quantities of different kind of muddy or granular material.
All metal parts which eventually are in contact with food are completely made of stainless steel and the seals used comply with food use, therefore assuring no contamination from rust or from rubber phthalates.
IRP piston pumps are used in olive oil mills, purifiers, wineries, digesters, to produce biogas, dairy farms, food companies and whenever it’s necessary to move liquid, paste, pulp, pomace, wort, juice or muddy material having a minimum humidity of 60%.
